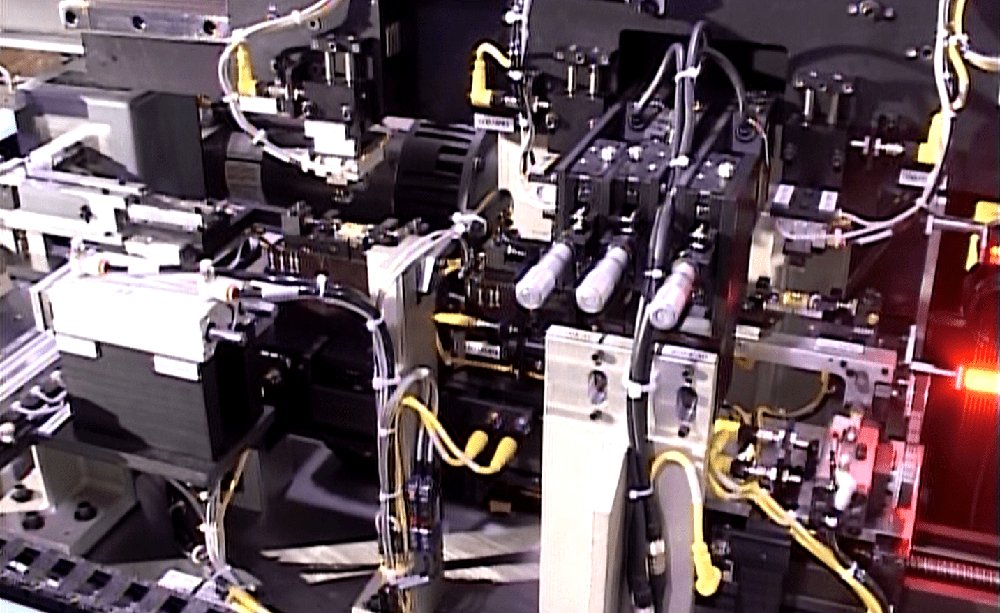

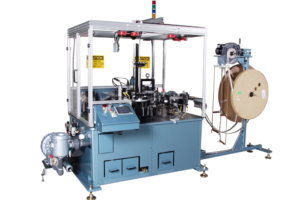

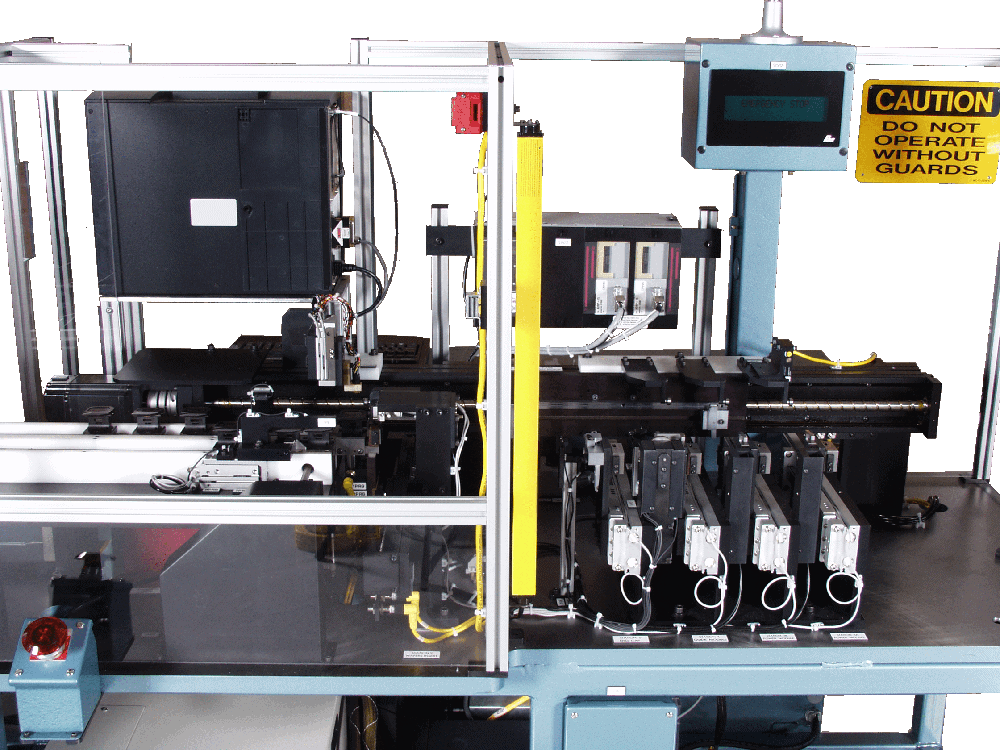

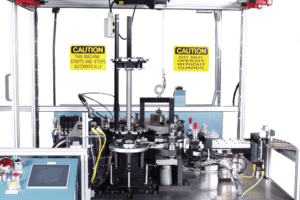

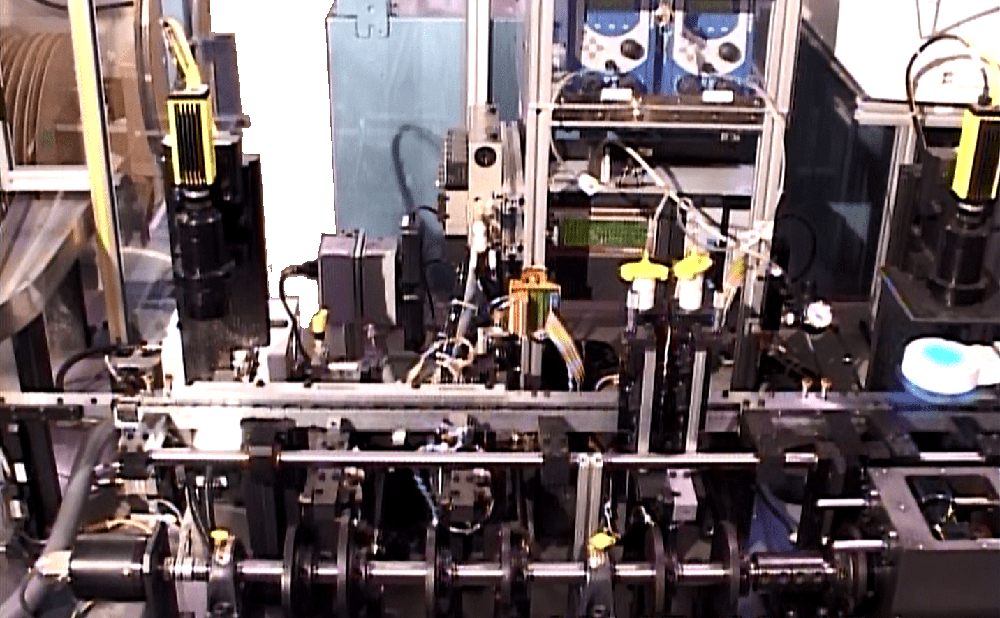

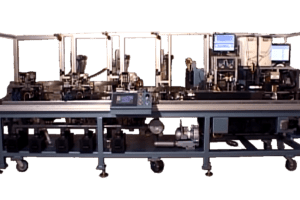

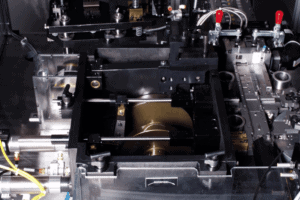

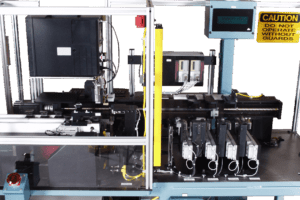

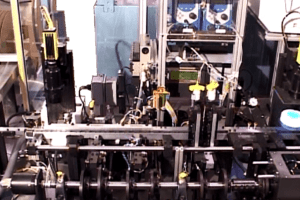

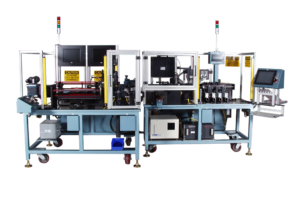

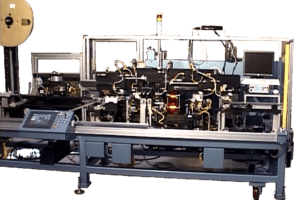

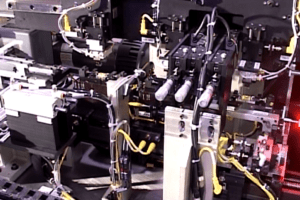

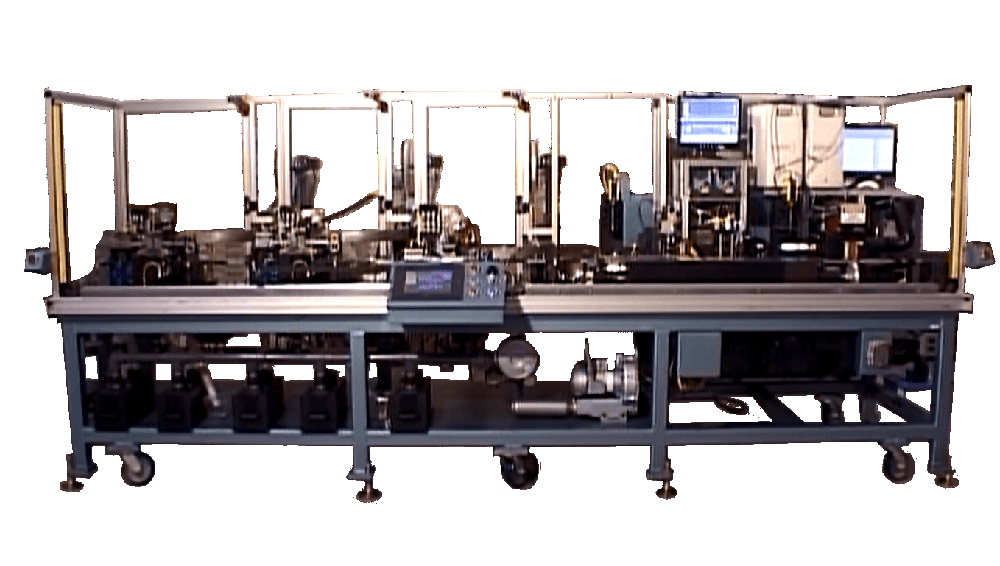

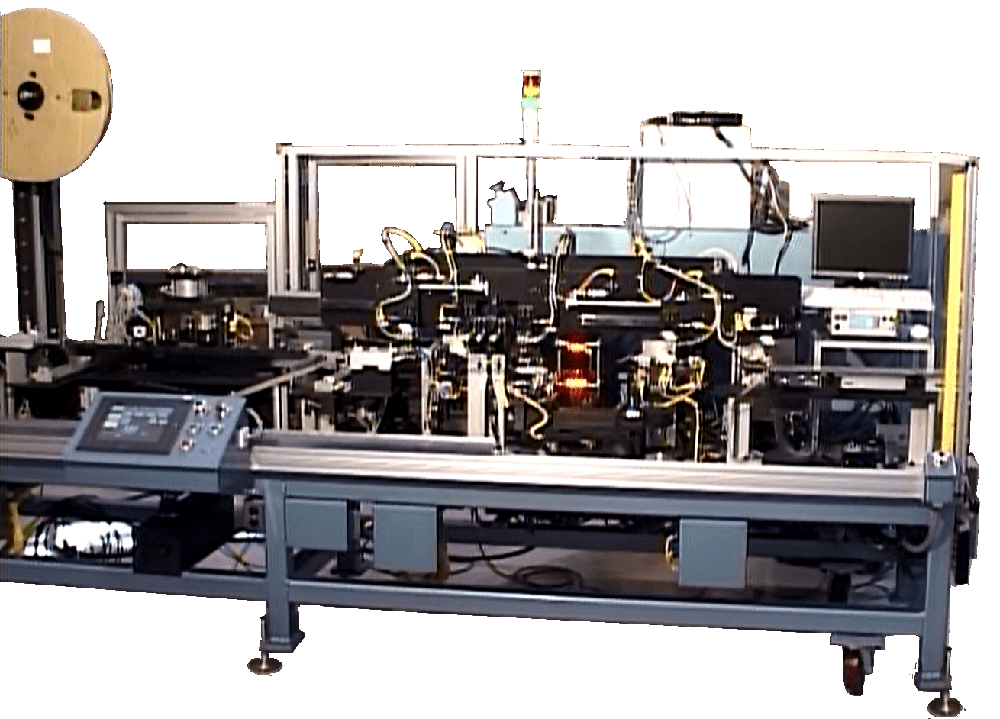

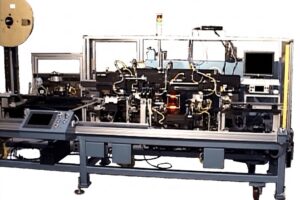

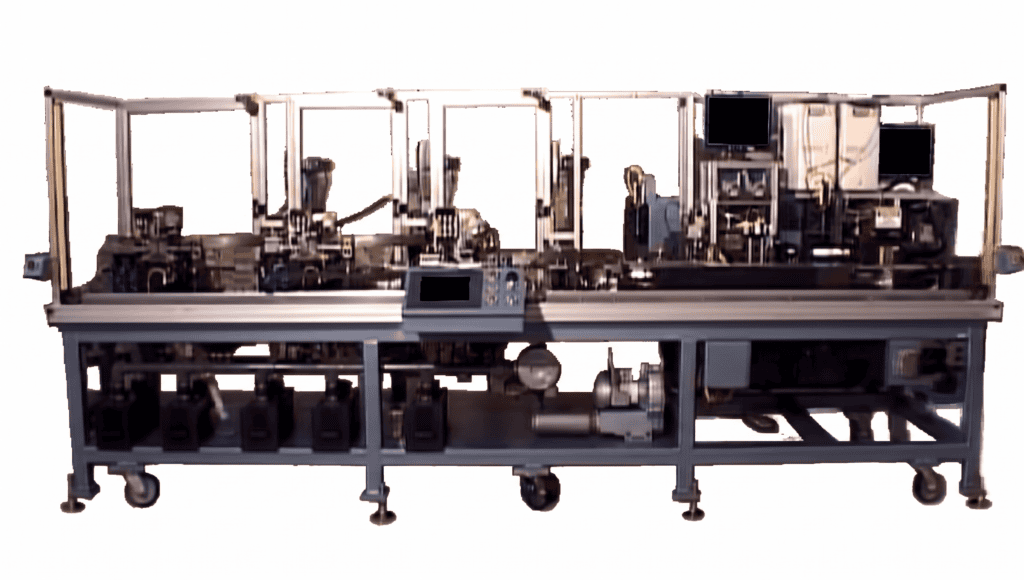

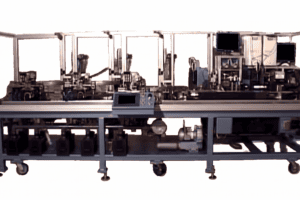

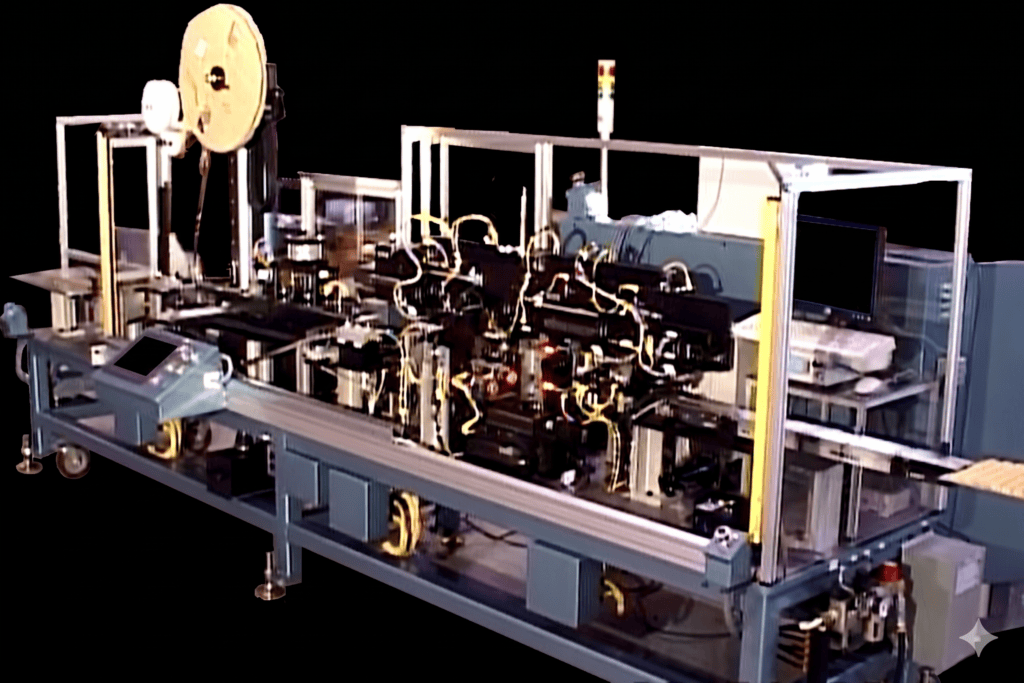

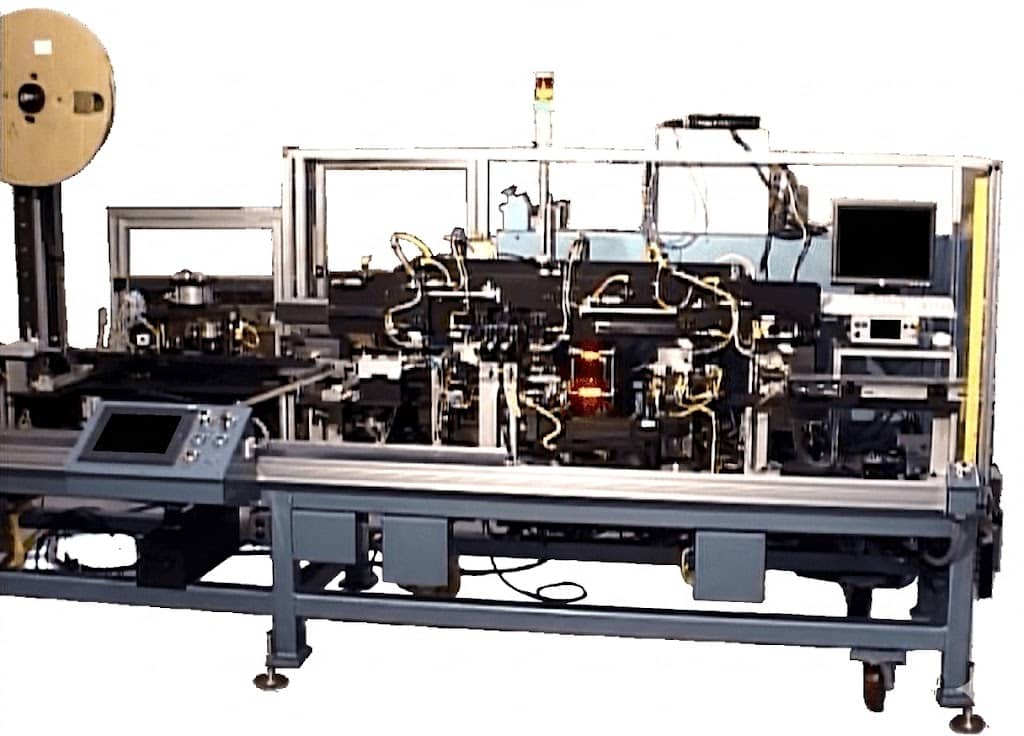

We specialize in the production of fully automated, custom programmable equipment for electrical and electronic component assembly. Machines for electrical connector assemblies, pin insertions, semiconductor wafer assemblies, and several other applications can be built to exact specifications.

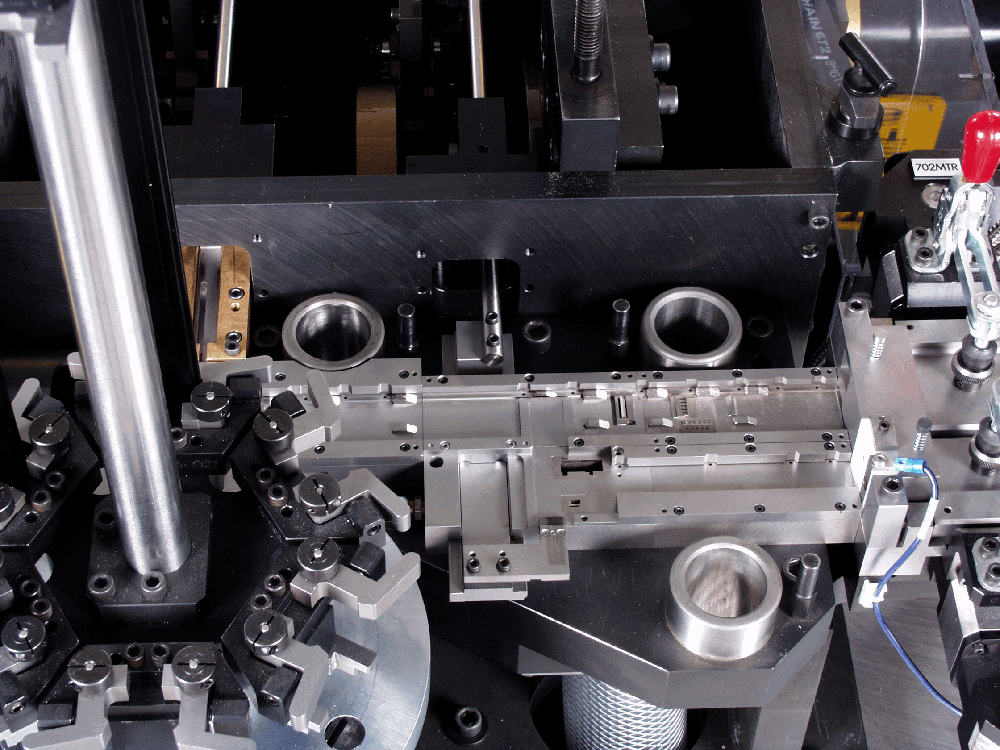

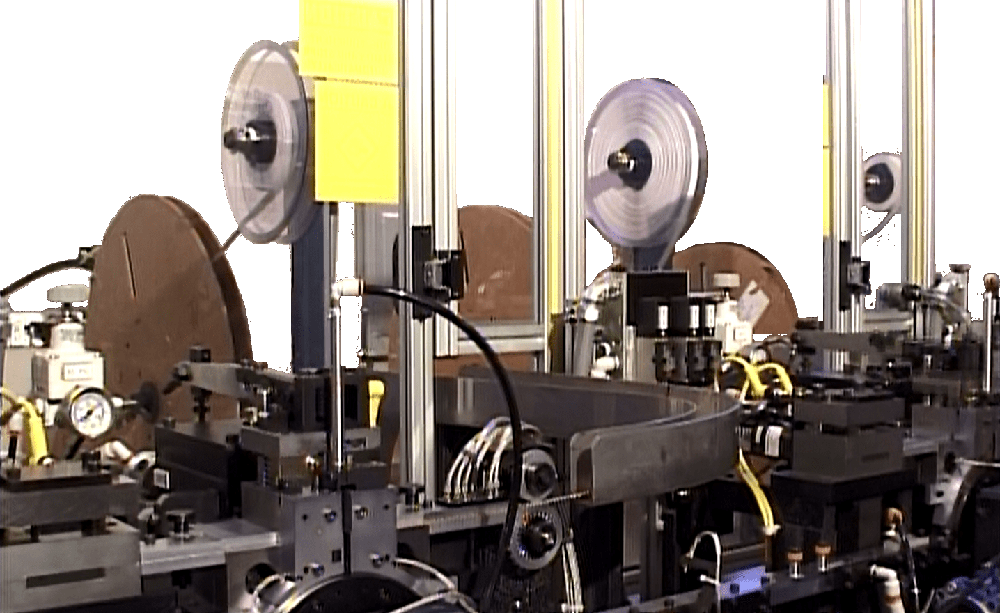

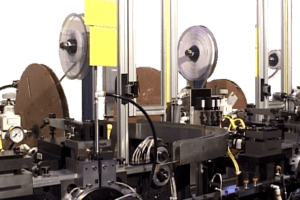

Vibratory bowls or inline feeders for feeding electronic components into machines are integrated in our assembly machines. Special options for component orientation, parts handling, and high speed stitching operations can also be provided. We custom build automated equipment for assembling mezzanine/stacking connectors, VHDM (high-density) connectors, and back panel connectors in different configurations. Machines for inserting pins into electrical housings, stitching semiconductor wafers with signal shields, and numerous other assembly operations are also manufactured by Central Machines.
We have standard designed machined chassis and stitching heads for the electrical connector industry. This allows you to choose the appropriate machine for a specific application. Control panels, and programming options can be integrated to make the machine more user-friendly.
From each and every machine our customers can expect longevity and reliability due to our use of mechanical and servo driven motions. Our skilled work force is all under one roof, allowing for the complete construction, and product accountability, within our shop. We use both conventional and state-of-the-art CAD/CAM and wire EDM machines to fabricate the components.
Specifications
| Applications | Electrical Connector Assembly (mezzanine /stacking connectors, VHDM (high-density) connectors, back panel connectors) Pin Insertions into Housings Semiconductor Wafer Assembly |
| Types of Machines Available | Indexing Dial Multiple Piece Assembly Machine Pick and Place Machines Carousel Machines Servo/CAM Driven Stiching Heads Walking Beam Machine Custom Designed Machines |
| Machine Production Rate | 20 to 1300 ppm or more |
| Feeder Type | Centrifugal Feeders In-Line Tracks Vibratory Feeders |
| Safety Guarding Options | Guarding for pinch points and rotating sections Perimeter guarding with clear polycarbonate panels Electrically interlocked guarding Safety Relays Light Curtains |
| PLC Integration Supplier Options | Allan Bradley GE Mitsubishi Omron Or Customer Specified PLC Direct Siemens |
| Testing Process | Hypot test for electrical test on connectors |
